Lab 2 - Assembly Language Lab

-

 I am writing a Lab 2 which is about the basics of the assembly language of 6502. For this lab I was given a piece of code, for which I have to modify the code or to calculate performance.


First of all, I was given the following code:

	lda #$00	; set a pointer in memory location $40 to point to $0200
	sta $40		; ... low byte ($00) goes in address $40
	lda #$02
	sta $41		; ... high byte ($02) goes into address $41

	lda #$07	; colour number

	ldy #$00	; set index to 0

loop:	sta ($40),y	; set pixel colour at the address (pointer)+Y

	iny		; increment index
	bne loop	; continue until done the page (256 pixels)

	inc $41		; increment the page
	ldx $41		; get the current page number
	cpx #$06	; compare with 6
	bne loop	; continue until done all pages

This code fills the bitmapped display with yellow color, each pixel of the display is showing yellow color. The result of code is:

Calculating Performance:

Our first task was to calculate performance of the code. Here is the analysis of the code:

We assuming that CPU has 1 MHz clock speed. We calculated that code will have 11313 cycles, and it will be take 11.313 ms to execute.

Modifying the code:

Our second task is to modify the code so that we can fill the bitmap display with light blue color. we can achieve it by loading the accumulator with $e instead of $07 which is the color code for light blue. Here is the updated code:

	lda #$00	; set a pointer in memory location $40 to point to $0200
	sta $40		; ... low byte ($00) goes in address $40
	lda #$02
	sta $41		; ... high byte ($02) goes into address $41

	lda #$e	        ; colour number

	ldy #$00	; set index to 0

loop:	sta ($40),y	; set pixel colour at the address (pointer)+Y

	iny		; increment index
	bne loop	; continue until done the page (256 pixels)

	inc $41		; increment the page
	ldx $41		; get the current page number
	cpx #$06	; compare with 6
	bne loop	; continue until done all pages

And here is the result:
Second part of the task is to change the color for each quarter of the bitmap display. In order to change the color for each quarter we need to change the value of accumulator each time the the outer loop iterates meaning, we can do it by writing LDA $41 after the bne loop, which means each time the page is changed, meaning page is incremented, value of accumulator will change which will result into changing in color. Here is the updated code


        lda #$00	; set a pointer in memory location $40 to point to $0200
	sta $40		; ... low byte ($00) goes in address $40
	lda #$02
	sta $41		; ... high byte ($02) goes into address $41

	lda #$e	        ; colour number

	ldy #$00	; set index to 0

loop:	sta ($40),y	; set pixel colour at the address (pointer)+Y

	iny		; increment index
	bne loop	; continue until done the page (256 pixels)
        lda $41         ; changing the value of accumulator, will change the color
	inc $41		; increment the page
	ldx $41		; get the current page number
	cpx #$06	; compare with 6
	bne loop	; continue until done all pages

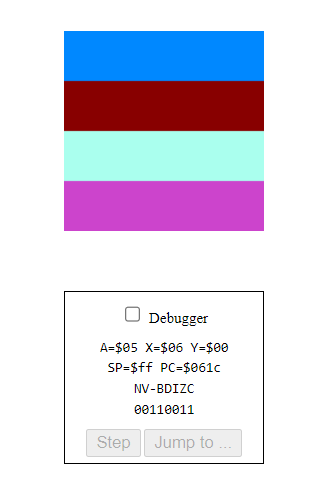

 Here is the result:

During this lab, I learned a lots of things. First of all, I learned about the assembly language and how all these registers work, how to write instructions and access memory and update variables. How to write loops, how to use pointers. Different types of address modes, how the bitmap display is changed.
This was fun activity, it taught me a lot about 6502 emulator. It also taught to calculate the performance of the code and calculate execution time.
