LAB - 3 NUMBER GUESSER GAME

-

 LAB 3

I am writing a Lab 3 for my course SPO600. This Lab is about the Math and Strings in 6502 assembly language. This lab was about the graphical output using bitmap screen, text input using keyboard, and text output.


Requirements for this lab was to write a program which should work in 6502 emulator. This program should output on character screen as well as on bitmap screen. User input from keyboard is mandatory for this lab in some form.

For this lab I thought to make a Number Guessing game.

A simple game in which a random number is generated. User will guess the number using hit and trial method. When user will be enter smaller number or larger number than the guess, system will notify the user. By doing this in this game user has to guess the number in shortest number of attempts.

I decided to make this game simple by choosing to guess number between 0-9, only. The user can only input a one digit number. User can use backspace to edit the number entered and user can press enter to confirm the number.

If the number entered by user is smaller, then bitmap screen will display blue color.



If the number entered by user is greater, the bitmap screen will display red color




If the number entered by user is equal, the bitmap screen will display green color.



Here is the code:


; ROM routines
define		SCINIT		$ff81 ; initialize/clear screen
define		CHRIN		$ffcf ; input character from keyboard
define		CHROUT		$ffd2 ; output character to screen
define		SCREEN		$ffed ; get screen size
define		PLOT		$fff0 ; get/set cursor coordinates

define		NUM		$2000 ; to store the number
define 		INPUT		$2001 ; to store the input

	LDA #$00
	STA INPUT
	JSR SCINIT

GET_RANDOM:
	LDA $FE

	CMP #48
	BCC GET_RANDOM

	CMP #58
	BCS GET_RANDOM

	STA NUM

	LDY #$00

INSTUCT:
	LDA INSTUCT_TEXT, Y
	BEQ DONE_INSTRUCT
	JSR CHROUT
	INY
	BNE INSTUCT

DONE_INSTRUCT:
	LDY #$00
	JSR PROMPT_CHAR

INSTUCT_TEXT:
	dcb "I","n","s","t","r","u","c","t","i","o","n","s",$0d
	dcb "G","u","e","s","s",32,"t","h","e",32,"n","u","m","b","e","r",
	dcb 30,
	dcb "b","e","t","w","e","e","n",30,
	dcb "0",30,"-",30,"9", $0d
	dcb "I","f",30,
	dcb "y","o","u","r",30,
	dcb "n","u","m","b","e","r",30,
	dcb "i","s",30,
	dcb "s","m","a","l","l","e","r",30,
	dcb "t","h","e","n",30,
	dcb "s","c","r","e","e","n",30,
	dcb "w","i","l","l",30,
	dcb "d","i","s","p","l","a","y",30,
	dcb "b","l","u","e",30,
	dcb "c","o","l","o","u","r", $0d,
	dcb "I","f",30,
    	dcb "y","o","u","r",30,
    	dcb "n","u","m","b","e","r",30,
    	dcb "i","s",30,
    	dcb "g","r","e","a","t","e","r",30,
    	dcb "t","h","e","n",30,
    	dcb "s","c","r","e","e","n",30,
    	dcb "w","i","l","l",30,
    	dcb "d","i","s","p","l","a","y",30,
    	dcb "r","e","d",30,
    	dcb "c","o","l","o","u","r", $0d,
	dcb "I","f",30,
    	dcb "y","o","u","r",30,
    	dcb "n","u","m","b","e","r",30,
    	dcb "i","s",30,
    	dcb "e","q","u","a","l",30,
    	dcb "t","h","e","n",30,
    	dcb "s","c","r","e","e","n",30,
    	dcb "w","i","l","l",30,
    	dcb "d","i","s","p","l","a","y",30,
    	dcb "g","r","e","e","n",30,
    	dcb "c","o","l","o","u","r", $0d, 00


PROMPT_CHAR:
	LDA PROMPT_TEXT, Y
	BEQ DONE_PROMPT
	JSR CHROUT
	INY
	BNE PROMPT_CHAR

DONE_PROMPT:
	JSR GET_INPUT

PROMPT_TEXT:
	dcb "E","n","t","e","r",32,"a",32,"1","-","d"
	dcb "i","g","i","t",32,"n","u","m","b","e","r",":",32,$0d
	dcb 00

GET_INPUT:
	LDA #$A0
	JSR CHROUT
	LDA #$83
	JSR CHROUT

GET_NUM:
	JSR CHRIN
	CMP #$00
	BEQ GET_NUM

	CMP #$0D
	BNE CHECK_NUM

	LDA INPUT
	CMP #$00
	BNE INPUT_DONE

CHECK_NUM:

	CMP #48		; Compare input with 0
	BCC GET_NUM

	CMP #58		; Compare input with 9
	BCS GET_NUM

	STA INPUT
	JSR CHROUT
	LDA #$A0
	JSR CHROUT
	LDA #$83
	JSR CHROUT

CHECK_BACKSPACE:
	JSR CHRIN
	CMP #$00
	BEQ CHECK_BACKSPACE

	CMP #$0D
	BEQ INPUT_DONE

	CMP #$08
	BEQ BACKSPACE

	JMP CHECK_BACKSPACE

BACKSPACE:
	LDA #$20
	JSR CHROUT
	LDA #$83
	JSR CHROUT
	LDA #$83
	JSR CHROUT
	LDA #$A0
	JSR CHROUT
	LDA #$83
	JSR CHROUT
	JMP GET_INPUT

; COMPARING THE NUMBER
INPUT_DONE:
	LDA #$20
	JSR CHROUT
	LDA #$83
	JSR CHROUT
	LDA #$0d
	JSR CHROUT

	LDA INPUT
	CMP NUM
	BEQ MATCH

	CMP NUM
	BCC LESS

	CMP NUM
	BCS MORE
;-- IF NUMBER IS SMALLER

LESS:
	LDA #$00
	STA $40
	LDA #$02
	STA $41
	LDA #$06
	LDY #$00
BLUE_LOOP:
	STA ($40),y
	INY
	BNE BLUE_LOOP
	INC $41
	LDX $41
	CPX #$06
	BNE BLUE_LOOP

	LDY #$00
	JMP PROMPT_CHAR

;--- IF NUMBER IS GREATER

MORE:
	LDA #$00
	STA $40
	LDA #$02
	STA $41
	LDA #$0a
	LDY #$00
RED_LOOP:
	STA ($40),y
	INY
	BNE RED_LOOP
	INC $41
	LDX $41
	CPX #$06
	BNE RED_LOOP

	LDY #$00
	JMP PROMPT_CHAR

; -- IF NUMBER IS EQUAL

MATCH:
	LDA #$00
	STA $40
	LDA #$02
	STA $41
	LDA #$0d
	LDY #$00
GREEN_LOOP:
	STA ($40),y
	INY
	BNE GREEN_LOOP
	INC $41
	LDX $41
	CPX #$06
	BNE GREEN_LOOP

	BRK

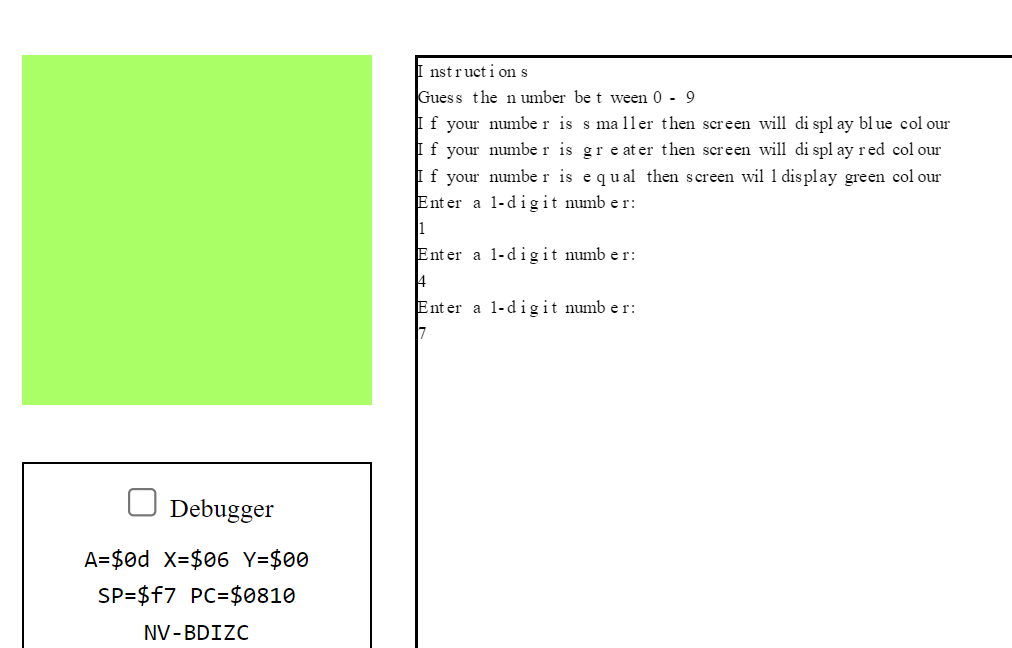

Here are some outputs:
